JS.107001

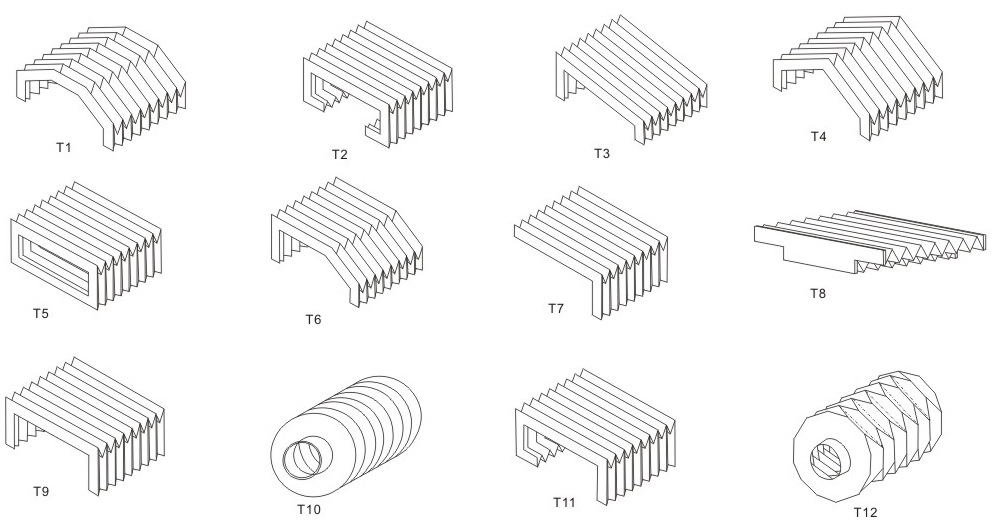

Flexible Accordion Type Guide ShieldsCover the main part of the multi-functional feasible shape
The following is a multi-functional shield, they can be used on any machine tools, fortunately, they can change multiterminal shape and the use of limited space for design.

The standard shield has been used for the high column of the machine tools and for the long guide of heavy-duty machine tools,which is designed in rational construction,for uniform traveling and is furable.

1.Fastening flanges.
2.P01 Steel intermediate supports.
3.Brass or nylon guide shoes.
4.Nylon supporting rollers.
5.Rods and snatch spring pantograph(max.speed120mt/min)
6.Bosses profile of ehromed or galvanised steol,tosecure the bellow to the support
Plastic treated fabric.
8.Oil and emulsion resistant polyurethane adhesive.
9.Rigid PVC sheet.
10.Plastic treated fabric.
